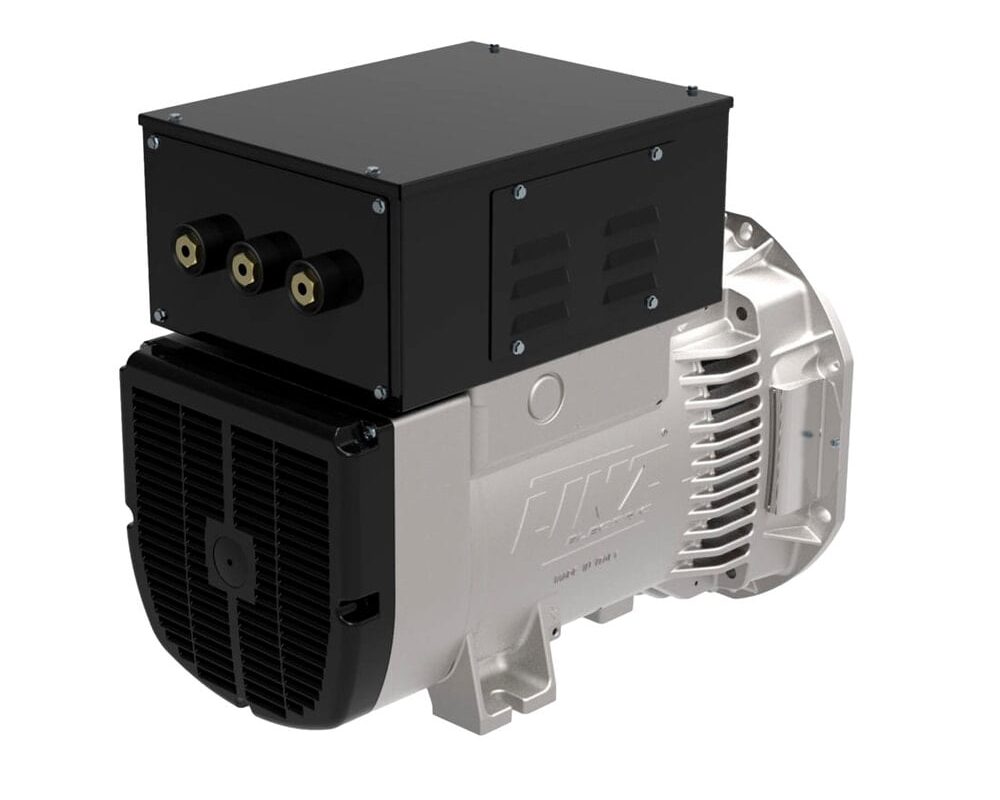

Linz | 48 Vdc | 140 Amp | 1800 RPM | 6.7 kW Alternator
• RPM from 1300 to 2100 rpm • Output voltage: 48Vdc • 9-phase brushless AC alternator source • Electronic regulation with ± 0.5% of voltage accuracy • With Current Limiting • Range of voltage regulation: 48 – 59 Vdc • Integrated rectifier • Ripple: < 1% without battery • Service cycle: S1 • SAE 5 | SAE 6.5
$2,669.89
| Power | 6.7 kW |
|---|---|
| SKU | ESB4-48/120 |
Description
RPM from 1300 to 2100 rpm
- Output voltage: 48Vdc
- 9-phase brushless AC alternator source
- Electronic regulation with ± 0.5% of voltage accuracy
- With Current Limiting
- Range of voltage regulation: 48 – 59 Vdc
- Integrated rectifier
- Ripple: < 1% without battery
- Service cycle: S1
- SAE 5 | SAE 6.5
The Linz | 48 Vdc | 140 Amp | 1800 RPM | 6.7 kW Alternator is a Linz Electric-built unit delivering 6.7 kW.
